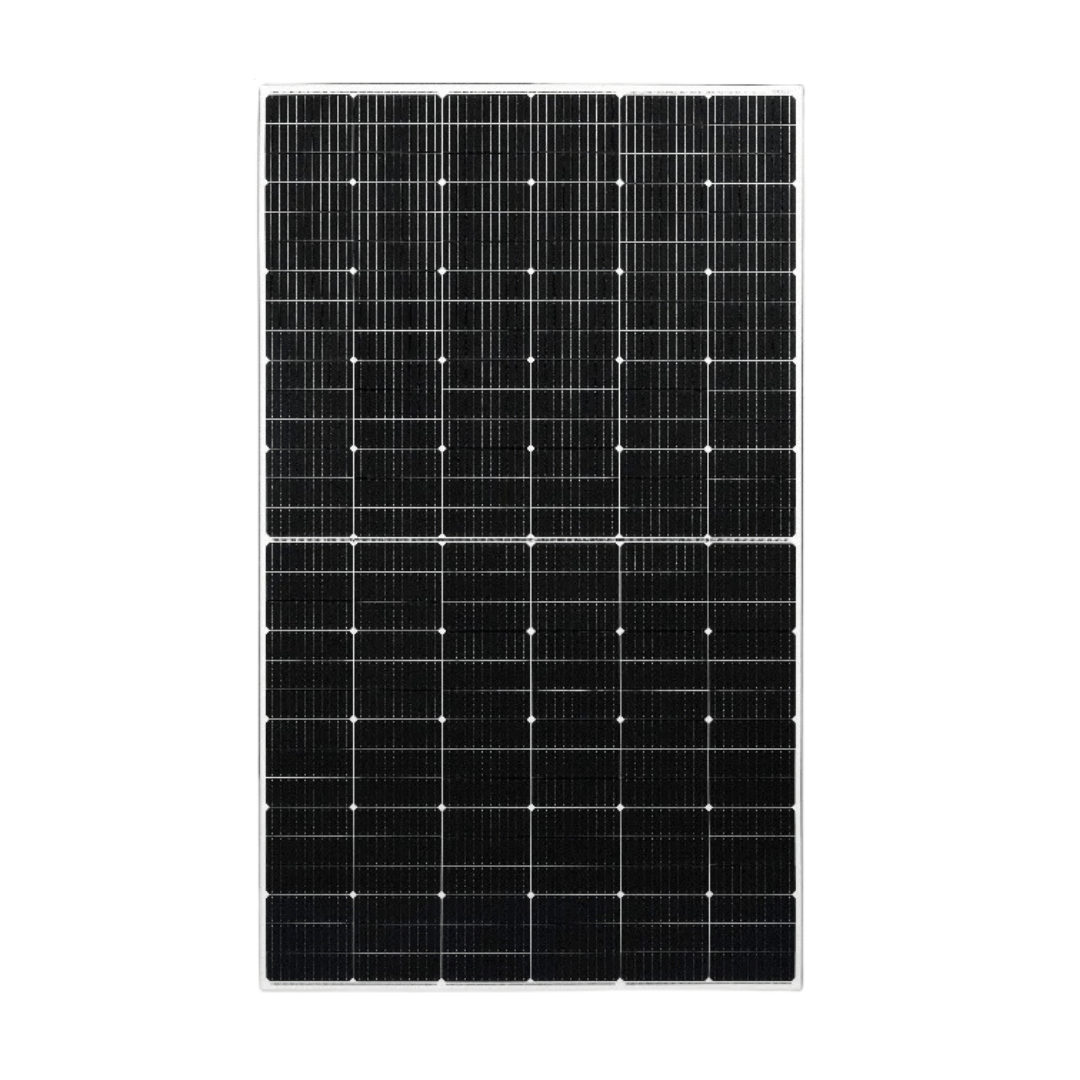

- DAH 460W Monocrystaline Unique Full Screen (Frameless) Solar Panel
- Tier 1
- 1903mm x 1134mm x 32mm
- Maximum Power (Pmax/W): 460
- Open-circuit Voltage (Voc/V): 62.4
- Maximum Power Voltage (Vmp/V): 52.8
- Short-circuit Current (Isc/A): 9.31
- Maximum Power Current (Imp/A): 8.71
- Module Efficiency (%): 21.32
- 12-year Material & technology warranty, 30-year Linear power output warranty
Features
Low current, increased power generation: 1/3 design, lower current, and lower loss
Increase power generation by 6.15%+: The panel is capable of decreasing power generation loss caused by Dust, reducing the hot spot risk.
Curved Surface 128° R Angle Reduce holding pressure by 75%+: Curved Frame with ergonomic Design, optimized
Revolutionary Assembling Technology: Using excellent frame assembling technology, Strong Adhesion, and Durable in Use.
Excellent mechanical load capacity: Certified by Dust-Sand, Salt-Mist, Ammonia, etc. weather resistance tests and enhanced mechanical load: wind load (2400 Pa) and snow load (5400 Pa).
12-year Material & technology warranty, 30-year Linear power output warranty
Specifications
Electrical Specifications
STC
Maximum Power (Pmax/W): 460
Open-circuit Voltage (Voc/V): 62.4
Maximum Power Voltage (Vmp/V): 52.8
Short-circuit Current (Isc/A): 9.31
Maximum Power Current (Imp/A): 8.71
Module Efficiency (%): 21.32
NOTC
Maximum Power (Pmax/W): 346
Open-circuit Voltage (Voc/V): 59.1
Maximum Power Voltage (Vmp/V): 50.0
Short-circuit Current (Isc/A): 7.51
Maximum Power Current (Imp/A): 6.92
Mechanical Specifications
Cable (Including connector): 4.0mm2, 300/400mm in length,
No.of Cells: 180 (6×30)
Glass: 3.2mm High Transmission, Antireflection Coating
Junction box: IP68, 3 Bypass Diodes
Connector: MC4 Compatible
Weight: 23.5kg
Cells Type: Mono 182×60.7mm
Dimension (L×W×H): 1903×1134×32mm
Operations Parameters
Maximum system voltage: 1500V DC
Operating Temperature: -40°C~+85°C
Maximum series fuse rating: 20A
Snow load, frontside/Wind load, backside: 5400Pa/2400Pa
Nominal operating cell temperature: 45°C±2°C
Application level: Class A
