Product Details
Weight: 18 kg

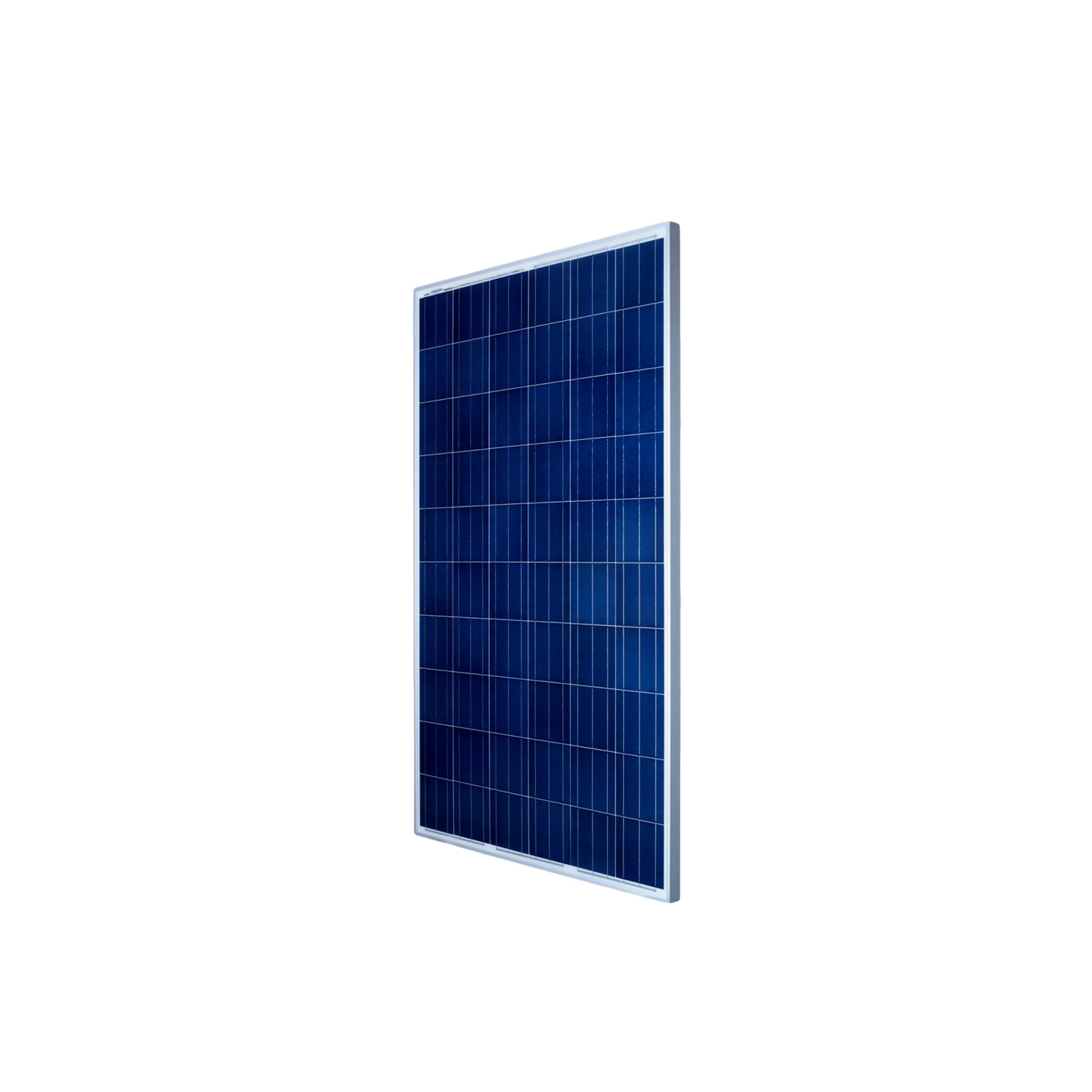

Renewsys 275Watt Solar Panel (A-Grade)
The high performance Multi (Polly) Crystalline Silicon Modules are designed for on-grid as well as off-grid applications.
TECHNICAL DETAILS:
Performance under standard test conditions (1000W/m2 AM 1.5, 25oC)
- Cell Technology, Multi-Crystalline (Poly)
- Rated power (Pmax), Wp – 270
- Max power voltage (Vmp), V – 31.16
- Max power current (Imp), A – 08.84
- Open circuit voltage (Voc), V – 38.97
- Short circuit current (Isc), A – 09.14
OPERATING CONDITIONS
- Ambient temperature, °C -40 to + 85
- Maximum system voltage, Vdc 1000
- Hail impact velocity, m/sec 23
- Maximum surface load capacity, Pascals 5400
MANUFACTURING WARRANTY (10 Years)
Product Delivery Warranty:
“DESERV- 3M6” Series: Period 25 years (10 years + 15 years)
The Module(s) sold could generate a power output of:
- +/- 90% of the rated power for a period of 10 years;
- +/- 80% of the rated power for the remaining Term of Warranty
