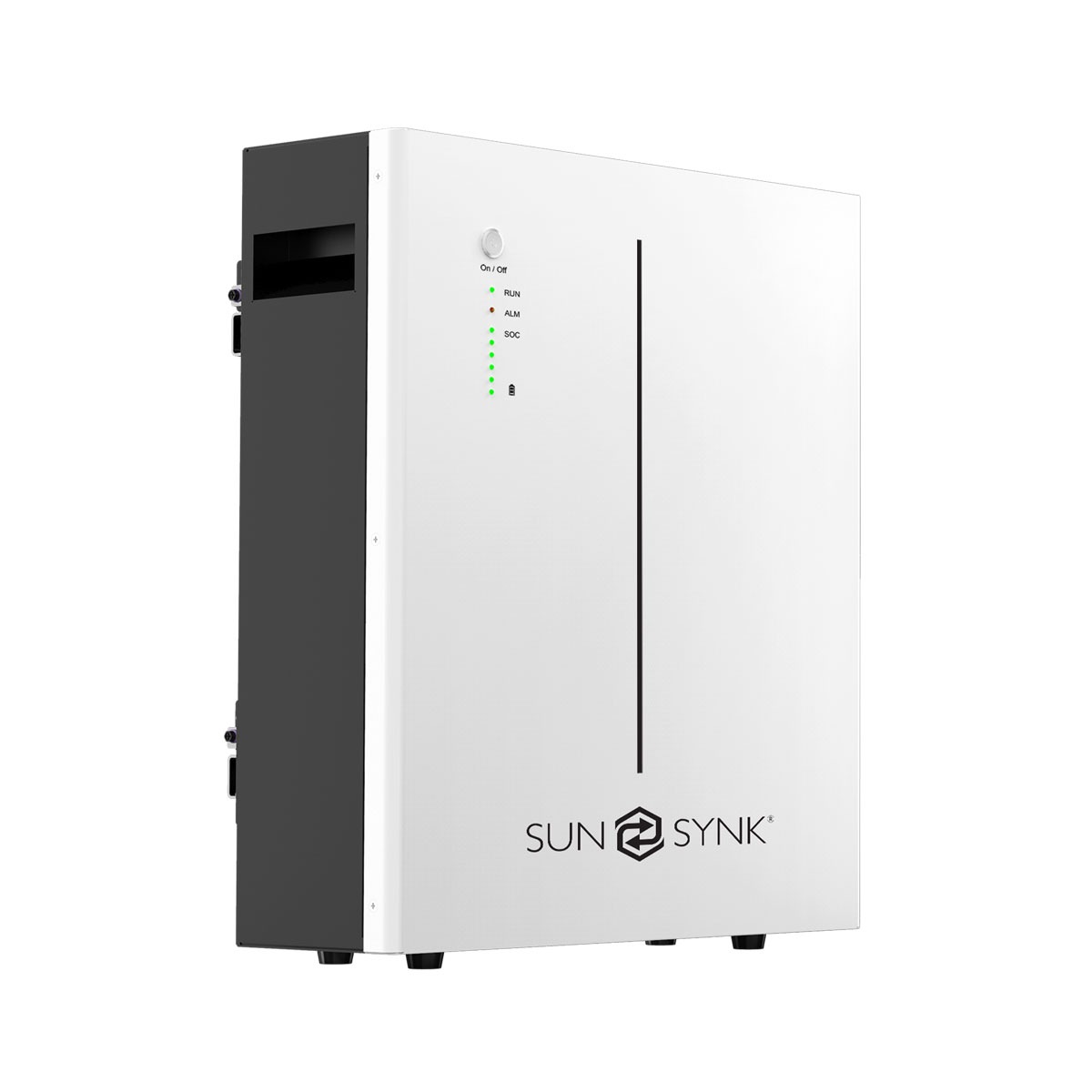

The incredible Sunsynk Battery LFP Wall Mount 5.32kWh 51.2V provides you, the user, with the optimal storage solution. Fitted with Lithium Ferro Phosphate rechargeable batteries and a built-in self-management system that detects abnormalities, this unit is expected to deliver every time.
| MODEL | SUN-BATT-5.32 |
| PERFORMANCE | |
| Norminal Voltage | 51.2 Vdc |
| Norminal Capacity | 104Ah |
| Battery Energy | 5320 Wh |
| Charge Voltage | 55.68~56.16 Vdc |
| Discharge Voltage | 45.6~56.16 Vdc |
| Norminal Charge / Discharge Current | 50A |
| Norminal Charge / Discharge Power | 2500W |
| Max Charge / Discharge Current | 100A |
| Max Charge / Discharge Power | 5000W |
| Short Circuit Current | 350A |
| COMMUNICATION | |
| Display | SOC Status indicator, LED indicator |
| Communication | RS232, RS485, CAN |
| GENERAL SPECIFICATION | |
| Dimension (WxDxH mm) | 450x150x533mm |
| Weight (kg) | 45kg |
| Installation | Floor stand or wall mounted |
| Working Temperature | -20°C ~ 60°C |
| Storage Temperature | <25°C, 12 months; <35°C, 6 months; <45°C, 3 months |
| Operating / Storage / Humidity | <95%RH |
| Max Operating Altitude | <2000m |
| IP Rating | IP20 |
| Cell Technology | LiFePO, Lithium Ion Phosphate |
| Cycle Life | 6000 Cycles @ 80% DOD/25°C/0.5C, 60% EOL |
| Scalability | Max 8 batteries in parallel |
| STANDARD COMPLIANCE | |
| Certification | PACK:UN38.3,IEC62619,IEC61000 CELL:UN38.3,IEC62619,UL 1642, JET (more available upon request) |
| ORDERING AND DELIVERABLE PART | |
| Product Ordering Part | SUN-BATT-5.32 battery SUN-BATT-5.32 parallel cable SUN-BATT-5.32 to PCS cable |
