PowerAssist
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
ESS: Energy Storage Systems
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more…”

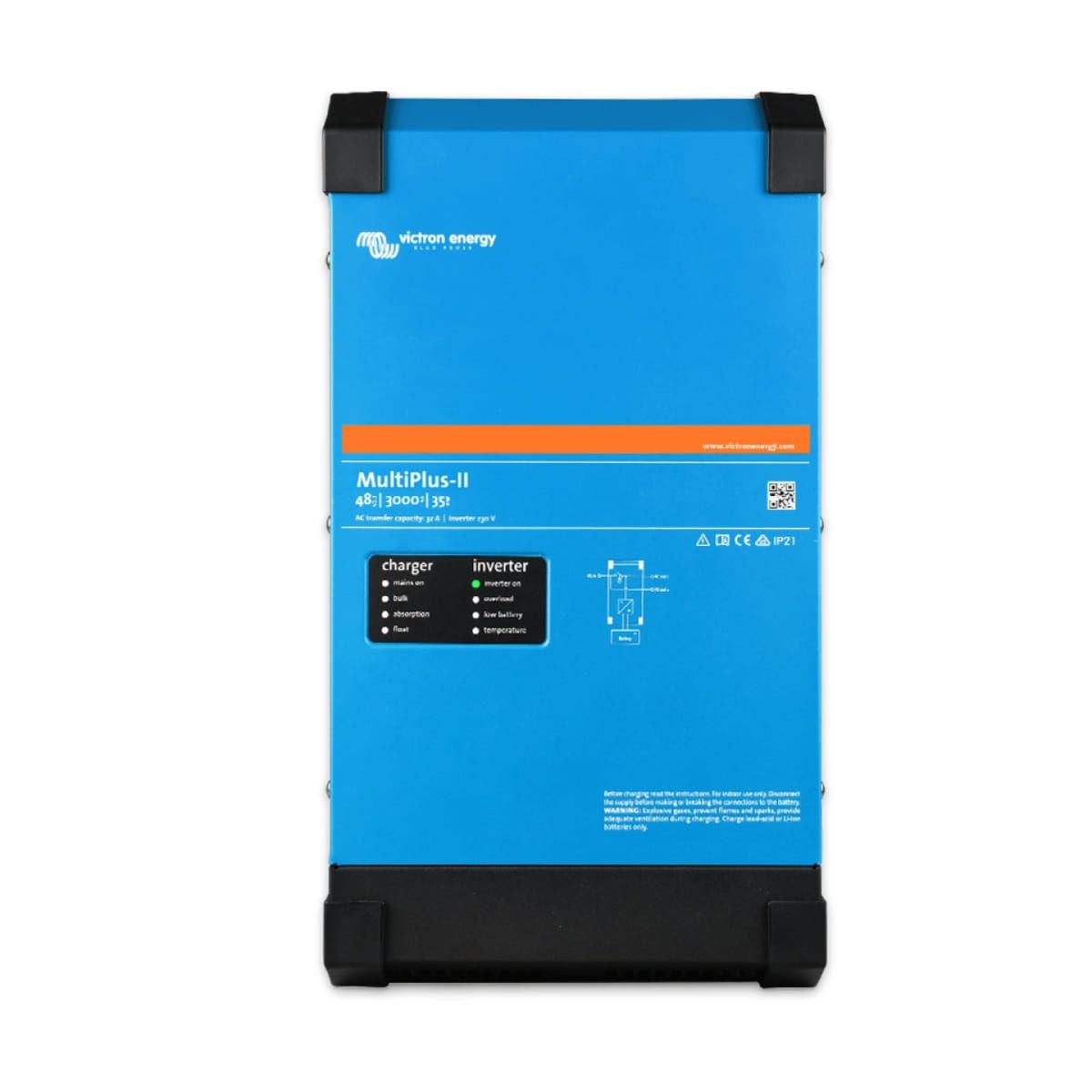

| MULTIPLUS-II | 48/3000/35-32 |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 32 A |
| Maximum AC input current | 32 A |
| INVERTER | |
| DC Input voltage range | 38 – 66 V |
| Output | Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% |
| Cont. output power at 25°C | 3000 VA |
| Cont. output power at 25°C | 2400 W |
| Cont. output power at 40°C | 2200 W |
| Cont. output power at 65°C | 1700 W |
| Maximum apparent feed-in power | 2500VA |
| Peak power | 5500 W |
| Maximum efficiency | 95 % |
| Zero load power | 11 W |
| Zero load power in AES mode | 7 W |
| Zero load power in Search mode | 2 W |
| CHARGER | |
| AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz |
| Charge voltage ‘absorption’ | 57,6 V |
| Charge voltage ‘float’ | 55,2 V |
| Storage mode | 52,8 V |
| Maximum battery charge current | 35 A |
| Battery temperature sensor | Yes |
| GENERAL | |
| Auxiliary output | Yes (32 A) |
| External AC current sensor (optional) | 50 A |
| Programmable relay | Yes |
| Protection | a – g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +65°C (fan assisted cooling) |
| Humidity (non-condensing) | max 95% |
| ENCLOSURE | |
| Material & Colour | steel, blue RAL 5012 |
| Protection category | IP22 |
| Battery-connection | M8 bolts |
| 230 V AC-connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 18 kg |
| Dimensions (hxwxd) | 506 x 275 x 147 mm |
| STANDARDS | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Uninterruptible power supply | IEC 62040-1, AS 620401.1 |
| Anti-islanding | VDE-AR-N 4105, TOR-D4, AS/NZS 4777.2, NRS 097-2-1, UTE C15-712-1, C10/11, RD 1699-RD 413, G59/3-2, G83/2 |
